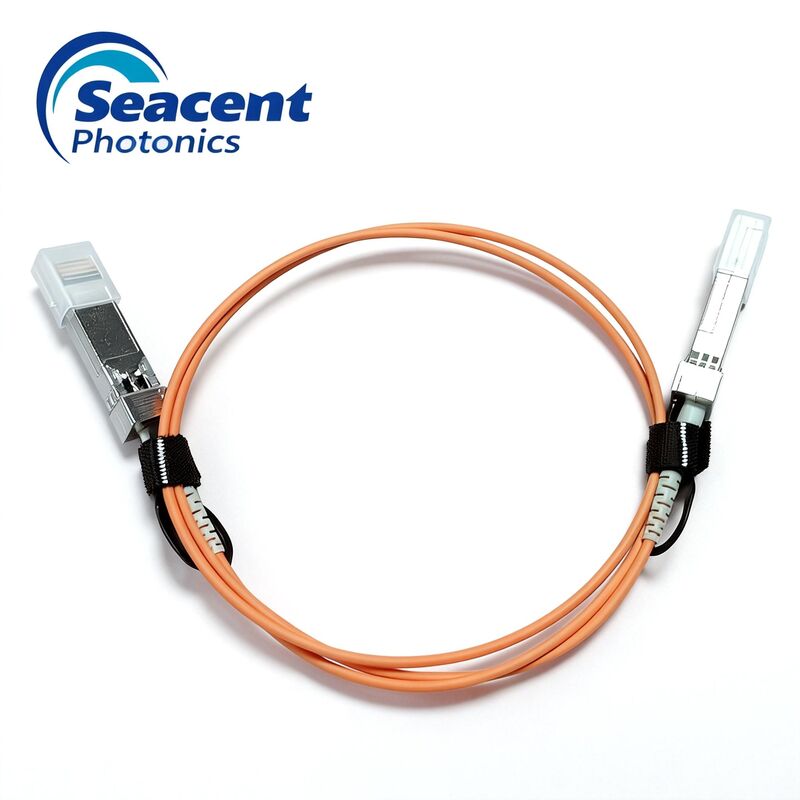

10G SFP+ AOC Active Optical Cables

Merknaam:	Seacent
Modelnummer:	10G SFP+
MOQ:	1 piece
Betalingsvoorwaarden:	L/C, T/T, D/P
Toeleveringsvermogen:	100,000 pieces per month

Detailinformatie

Productomschrijving

Detailinformatie

Place of Origin:

Shenzhen,China

Certificering:

ISO9001,ROHS

Totale snelheid:

Uitbraaktype:

Kant A Snelheid:

10GNRZ

Kant B Snelheid:

10GNRZ

Lengte:

1M-100M

Productnaam:

10G SFP+ AOC

Supply Ability:

100,000 pieces per month

Markeren:

SFP+ AOC Active Optical Cables

10G SFP+ AOC Cables

Active Optical AOC Cables

Productomschrijving

Applications:10G SFP+ AOC Active Optical Cables

Seacent Photonics' SFP+ 10G Active Optical Cables are direct-attach fiber solutions with integrated SFP+ connectors, specifically designed for high-density, cost-effective interconnections within racks and across adjacent racks. This single-channel, pluggable optical module offers an extremely convenient connectivity solution for 10 Gigabit Ethernet and Infiniband EDR applications. The module operates at a nominal wavelength of 850nm over multimode fiber systems, and its electrical interface utilizes a standard 20-contact edge-type connector, ensuring reliable performance and broad compatibility.

Product Features:

Electrical Interface Compliant with SFF-8431
850nm VCSEL Laser and PIN Photo-Detector
Maximum Link Length: 150m over OM2 MMF / 300m over OM3 MMF
Hot-Pluggable
Integrated Digital Diagnostic Monitoring (DDM) Functions
Operating Case Temperature: 0°C to +70°C
RoHS Compliant

Applications:

10G Ethernet
Data Centers
Infiniband transmission

Absolute Maximum Ratings:

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VCC	-0.5	+3.6	V
Storage Temperature	Tc	-40	+85	℃
Relative Humidity	RH	0	85	%

Recommended Operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	VCC	3.13	3.3	3.45	V
Operating Case Temp. (Standard)	Tca	0	—	+70	℃
Operating Case Temp. (Extended)	Tca	-40	—	+85	℃
Data Rate	DR	—	—	10.3125	Gbps
Fiber Bend Radius	Rb	3	—	—	cm

10G SFP+ AOC Active Optical Cables 0
