2x8 Fiber Optic PLC Splitter Micro Type Low Insertion Loss

Merknaam:	Seacent
Modelnummer:	2x8 minimodule
MOQ:	1 stuk
Betalingsvoorwaarden:	L/C, T/T
Toeleveringsvermogen:	100.000 stuks per maand

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

Guangdong, China

Certificering:

ISO9001 , ROHS

Productnaam:

Glasvezel plc splitter

Connector:

SC/APC

Retourverlies:

≥ 55 dB

Invoegverlies:

≤10,5 dB

≤ 0,25 dB

Directionaliteit:

≥ 55 dB

Levering vermogen:

100.000 stuks per maand

Markeren:

Micro Type PLC Splitter

Low Insertion Loss PLC Splitter

2x8 PLC Splitter

Productomschrijving

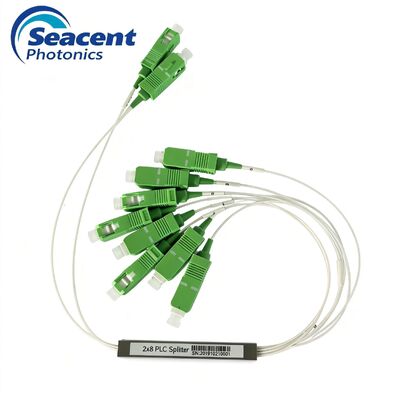

2x8 Fiber Optic PLC Splitter Micro Type Low Insertion Loss

The 2x8 micro PLC splitter from Seacent Photonics is built by precisely aligning and encapsulating silica glass waveguide circuits with fiber array chips, resulting in an extremely compact structure. This product strictly adheres to Telcordia GR-1209/1221 standards and delivers outstanding performance, including low insertion loss, low polarization-dependent loss (PDL), and high return loss. Its excellent channel uniformity ensures highly stable and reliable signal distribution.

Features:

Low Insertion Loss
Excellent Polarization Stability
Miniature, Compact Design
Outstanding Channel Uniformity
High Stability and Reliability
Compliant with Telcordia GR.1209 and GR.1221

Appliacation:

FTTH
CATV
Passive optical network
wired TV internet
PON-FTTX network

Specifications:

Item	Parameter
IL(dB)	10.5
Uniformity (dB)	≤1.0
PDL (dB)	≤0.25
RL(dB)	≥55
Directionality (dB)	≥55
Fiber length (m)	1.0 or customized
Temperature stability (dB)	-40℃- 85℃(≤0.5)
Working temperature	40℃- 85℃
Fiber type	G657A1 or customized

Note: The above IL is without the connector parameters.

2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.

Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=0.9mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

2x2

to 4x7x60mm

2x8

2x12

to 4x12x60 mm

2x16

2x24

to 6x20x80 mm

2x32

2x64 6x40x100 mm

2x8 Fiber Optic PLC Splitter Micro Type Low Insertion Loss 0
